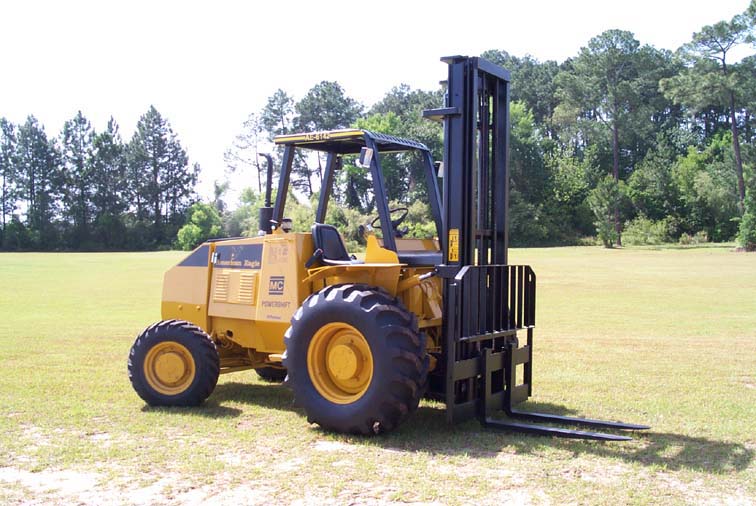

CAPACITY |
|
5,000 @ 24" L. C. |
OPERATIONAL DATA / with 12' Mast |
| Overall Height Mast Extended |
180
|
| Overall Height Mast Collapsed |
108
|
| Overall Height Top of Overhead Guard |
100
|
| Forward Tilt |
40 deg |
| Rearward Tilt |
10 deg
|
| Length of Forks (all forks optioal) |
48 |
| C/L drive Axle to Face of Forks |
36 |
| Wheelbase |
85
|
| Underclearance |
(Mast) 12
(Drive Axle) 17
(Steer Axle) 11
|
| Counterweight Overhang |
27 |
| Overall Lengh to Face of Forks |
148
|
| Tread Width (Drive Tires) |
68
|
| Overall Width (16.9 x 24 / 19.5L x 24) |
85 / 87
|
| Side Shift (Total) |
6
|
| Intersection Aisles (2 WD / 4 WD) |
138 / 143
|
| Right Angle Stacking with break (2 WD / 4WD) |
166 / 168 |
| Right Angle Stacking without break (2 WD / 4WD) |
195 / 196
|
| Turning Radius with break (2 WD / 4WD) |
111 / 125
|
| Turning Radius without break (2 WD / 4WD) |
152 / 159 |
| Turning Clearance with break (2 WD / 4WD) |
133 / 129
|
| Turning Clearance without break (2 WD / 4WD) |
165 / 165
|
| Weight |
11,592 lbs
|
| ADDITIONAL MAST DATA |
| Overall Height at low carry (6" off the ground) |
111
|
| Rate of Lift (Approximate) |
82 FPM
|
| Free Lift (additional free lift optional) |
0
|
| Carriage Width (other widths optional) |
60
|
| Lateral Fork Adjustment (outside dimension) |
58 |
