The Progressive Tri-Deck Rotary Finishing Mower isdesigned to maintain all large mowing areas. By utilizingyour own tractor, the Tri-Deck can mow from 50-75 acresin an eight hour day, at speeds up to 6 mph. Besides saving you time, labor and money, you still have your tractor availablefor other jobs after mowing. Operator friendly, simple and very low maintenance
requirementsare all built in features of the Progressive Tri-Deck Rotary Finishing Mower. With 3 independent floating decks mounted to a main transport frame, the Tri-Deck Mower will follow most ground conditions encounteredduringthe mowingof parks, industrialsites, school yards, large recreation areas, and golf courses, without scalping.
| |
TD65 / 15 1/2' |
TD92 / 22' |

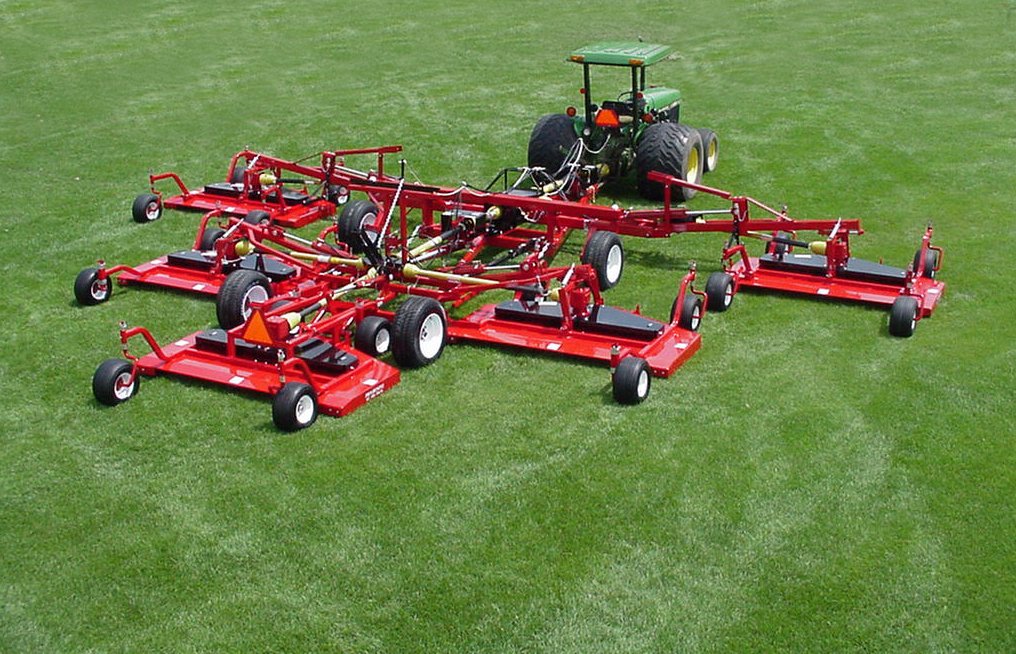

Pro-Max 36 /36' |
| |
| Recommended HP |
30 - 50
|
45 - 70
|
80 - 110
|
| Cutting Width |
15 1/2 ft.
|
22 ft.
|
36 ft.
|
| Transport Width |
8 1/2 ft.
|
9 1/2 ft.
|
13 ft.
|
| Heigth |
7 1/2 ft. |
10 ft. |
13 ft. |
| Length |
14 ft.
|
16 ft.
|
13 ft. 2 in.
|
| Ground Clearance |
9 1/4" |
9 1/4" |
8" |
| Spindles |
9 |
|
|
| Blades |
3 per Deck
|
3 per Deck
|
3 per Deck
|
| Weight |
2720 lbs.
|
4100 lbs.
|
4600 lbs.
|
| Tongue Weight Transport |
580 lbs. |
965 lbs. |
1440 lbs. |
| Tongue Weight Mowing |
330 lbs. |
360 lbs. |
700 lbs. |
| Mowing Capacity MPH: |
2 MPH = 3.75 acres / hr.
4 MPH = 7.5 acres / hr.
6 MPH = 11.3 acres / hr. |
2 MPH = 5.4 acres / hr.
4 MPH = 10.7 acres / hr.
6 MPH = 16 acres / hr.
7 1/2 MPH = 20 acres / hr. |
2 MPH = 8.8 acres / hr.
4 MPH = 17.5 acres / hr.
6 MPH = 26 acres / hr.
7 1/2 MPH = 32.8 acres / hr. |
| 360° turn |
0" uncut cirlce |
0" uncut cirlce |
0" uncut cirlce |
| Ground Pressure |
8 PSI |
7 PSI |
|
| Tire to Ground |
310 square inches of contact |
630 square inches of contact |
|
| Number of Tires |
10 on deck, 2 on main frame, all turn on greaseable, tapered roller bearings.
|
18 on deck, 4 on main frame, all turn on greaseable, tapered roller bearings. |
| Deck Drive |
PTO SHAFTS to right angle gear box drving 2 - "B" section belts to 3 heavy duty spindles. |
| Belt Adjustment |
Easily made by loosening four bolts at gear box base and adjusting the slide plate forward or backward and retightening.
|
| Deck Construction |
3/16" steel plate formed and welded with supporting members at high stress areas to achieve maximum structural strength. Deck is 5" deep, rear discharge. |
3/16" steel plate formed and welded with supporting members at high stress areas to achieve maximum structural strength. Deck is 5" deep, rear discharge. |
3/16" steel plate formed and welded with supporting members at high stress areas to achieve maximum structural strength. Deck is 5" deep, rear discharge |
